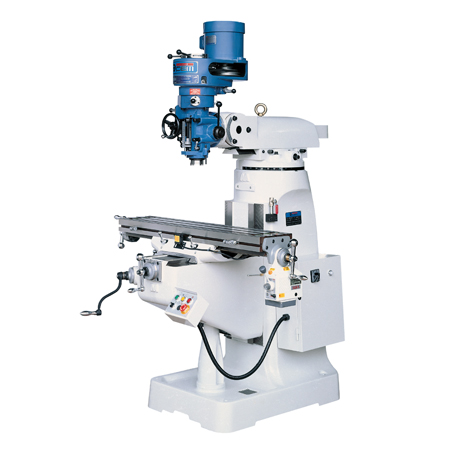

SPECIFICATION |
UNIT: MM |
|
ITEMS |
PBM-2S |
PBM-2EVS |
||
|
TABLE |
TABLE SIZE |
1067x230 (1245x230 OPT.) |
||
|
T SLOT (WxNO.xPITCH) |
16x3x63 |
|||
|
MAX. TABLE LOAD (KGS) |
250 |
|||
|
TRAVEL |
XxYxZ-MANUAL |
720x330x406 |
||
|
XxYxZ-AUTO |
630x310x395 |
|||
|
VERTICAL SPINDLE |
SPINDLE NOSE |
R8 / NT 30 |
||
|
STEPS |
8 |
INVERTER VARI. |
||
|
SPINDLE SPEED RPM |
(50 HZ) |
66-2265 80-2720 |
60-3600 |
|
|
(60 HZ) |
||||
|
SWIVELLING ANGLE (R&L, F&B) |
45o |
|||
|
QUILL TRAVEL |
127 |
|||
|
QUILL FEEDS/REV |
0.04 / 0.08 / 0.15 |
|||
|
SPINDLE NOSE TO TABLE |
55-461 |
|||
|
SPINDLE CENTER TO COLUMN |
145-525 |
|||
|
CROSS TRAVEL OF RAM |
380 |
|||
|
HORIZONTAL ROTATION OF RAM |
360o |
|||
|
MOTOR |
VERTICAL SPINDLE |
2HP |
3HP INV. |
|
|
COOLANT PUMP |
(1/8HP OPT.) |
|||
|
SIZE |
MACHINE (LxWxH) |
1400x1450x2100 |
||
|
NET WEIGHT (KGS) |
900 |
|||
|
＊SPECIFICATIONS MAY BE CHANGED OR IMPROVED WITHOUT NOTICE. |
||||
|
STANDARD ACCESSORIES |
OPTIONAL FUNCTIONS |
|
1. TOOL AND TOOL BOX |
1. TABLE SIZE 1245x230 (X AXIS TRAVEL +130) |
|
2. ONE SHOT LUBRICATION |
2. X, Y, Z AXES POWER FEED UNIT |
|
3. CHIP COVER FRONT AND REAR |
3. COOLANT EQUIPMENTS |
|
|
4. ELECTRIC WITH CONTROL BOX (2S) |
|
|
5. AIR POWER DRAWBAR |
|
|
6. DIGITAL READ OUT |
|
|
7. WORKING LAMP |
|
|
8. TAPPING DEVICE |
|
|
9. TABLE SPLASH GUARD |
